规格
|
∮A
|
∮D
|
∮C
|
H
|
L1
|
n-∮d
|
L
|
重量(KG)
|
|
PN10
|
PN16
|
PN10
|
PN16
|
|
DN50
|
164.0
|
125.0
|
125.0
|
55.0
|
343.5
|
161.00
|
4-∮18
|
4-∮18
|
108.5
|
8.43
|
|
DN65
|
181.0
|
145.0
|
145.0
|
67.0
|
354.5
|
161.00
|
4-∮18
|
4-∮18
|
112.0
|
8.78
|
|
DN80
|
195.0
|
160.0
|
160.0
|
83.0
|
370.5
|
161.00
|
4-∮18
|
8-∮18
|
114.0
|
9.35
|
|
DN100
|
215.0
|
180.0
|
180.0
|
108.0
|
395.0
|
127.00
|
8-∮18
|
8-∮18
|
128.0
|
13.07
|
|
DN125
|
245.0
|
210.0
|
210.0
|
126.0
|
422.0
|
127.00
|
8-∮18
|
8-∮18
|
141.0
|
16.55
|
|
DN150
|
280.0
|
240.0
|
240.0
|
160.0
|
465.5
|
127.00
|
8-∮22
|
8-∮22
|
141.0
|
22.83
|
|
DN200
|
337.0
|
295.0
|
295.0
|
206.0
|
567.0
|
268.00
|
8-∮22
|
12-∮23
|
154.5
|
31.46
|
|
DN250
|
404.0
|
350.0
|
355.0
|
250.0
|
629.0
|
268.00
|
12-∮23
|
12-∮26
|
166.0
|
52.53
|
|
DN300
|
445.0
|
400.0
|
410.0
|
305.0
|
701.0
|
268.00
|
12-∮23
|
12-∮26
|
180.0
|
56.69
|
|
DN350
|
505.0
|
460.0
|
470.0
|
348.0
|
925.0
|
268.0
|
12-∮23
|
16-∮26
|
190.0
|
78.2
|
|
DN400
|
565.0
|
515.0
|
525.0
|
395.0
|
981.0
|
268.0
|
12-∮26
|
16-∮30
|
216.0
|
111.2
|
|
DN450
|
615.0
|
565.0
|
585.0
|
447.0
|
1026.0
|
268.0
|
12-∮26
|
16-∮30
|
222.0
|
128.3
|
|
DN500
|
670.0
|
620.0
|
650.0
|
500.0
|
1074.0
|
268.0
|
20-∮26
|
20-∮33
|
229.0
|
158.8
|
|
DN600
|
780.0
|
725.0
|
770.0
|
602.0
|
1444.0
|
368.0
|
20-∮30
|
20-∮36
|
267.0
|
260.6
|
|
名称Name
|
材料Materials
|
|
阀体Body
|
灰铸铁、球墨铸铁、铸钢、304不锈钢、316不锈钢、316L不锈钢Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
|
|
阀板Disc
|
球铁尼龙、球铁电镀、304不锈钢、316不锈钢、316L不锈钢、双相不锈钢、铝青铜Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
|
阀座Seat
|
三元乙丙、丁腈、耐磨乙丙、耐温乙丙、氟橡胶、硅橡胶EPDM,NBR,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
|
阀轴Stem
|
45#碳钢、304不锈钢、316不锈钢、416不锈钢Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
|
|
产品型号Products Model
|

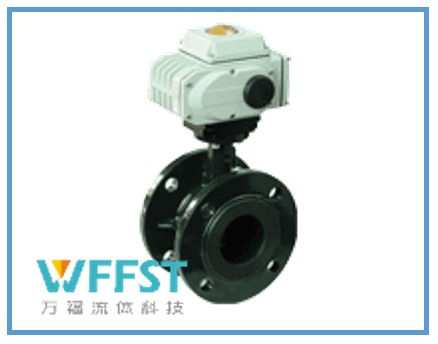

WF693D941X-10/16
|
|
公称通径(mm)Normal Diameter
|
DN50-DN600
|
|
公称压力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
|
适用介质Applicable medium
|
水、海水、污水、油、空气、食品、弱酸碱等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
|
适用温度Applicable temperature
|
-10～110℃
|
|
